colohub data center
colohub data center
C+K Architecture was the architect of record for this 57,500 square foot data center. It was designed for a three phase delivery with the first phase complete and in operation. Phase I included a complete rehab of this former grocery store into the framework for a 6 megawatt N+1 data center and offices with 30,000 sq feet of rentable raised floor data center area. Contiguous private spaces range from 350 to 10,000 Sq. Ft. The project was designed and built to grow with the customer’s needs and to achieve a very high energy efficiency ratio with a PUE of 1.5. The energy efficiency was so substantial it was recognized by the local electrical utility who provided and energy incentive of $100,000 plus. The design also allows enough flexibility to provide 2N solutions as customers demand. When fully built this facility will boast the following specifications:

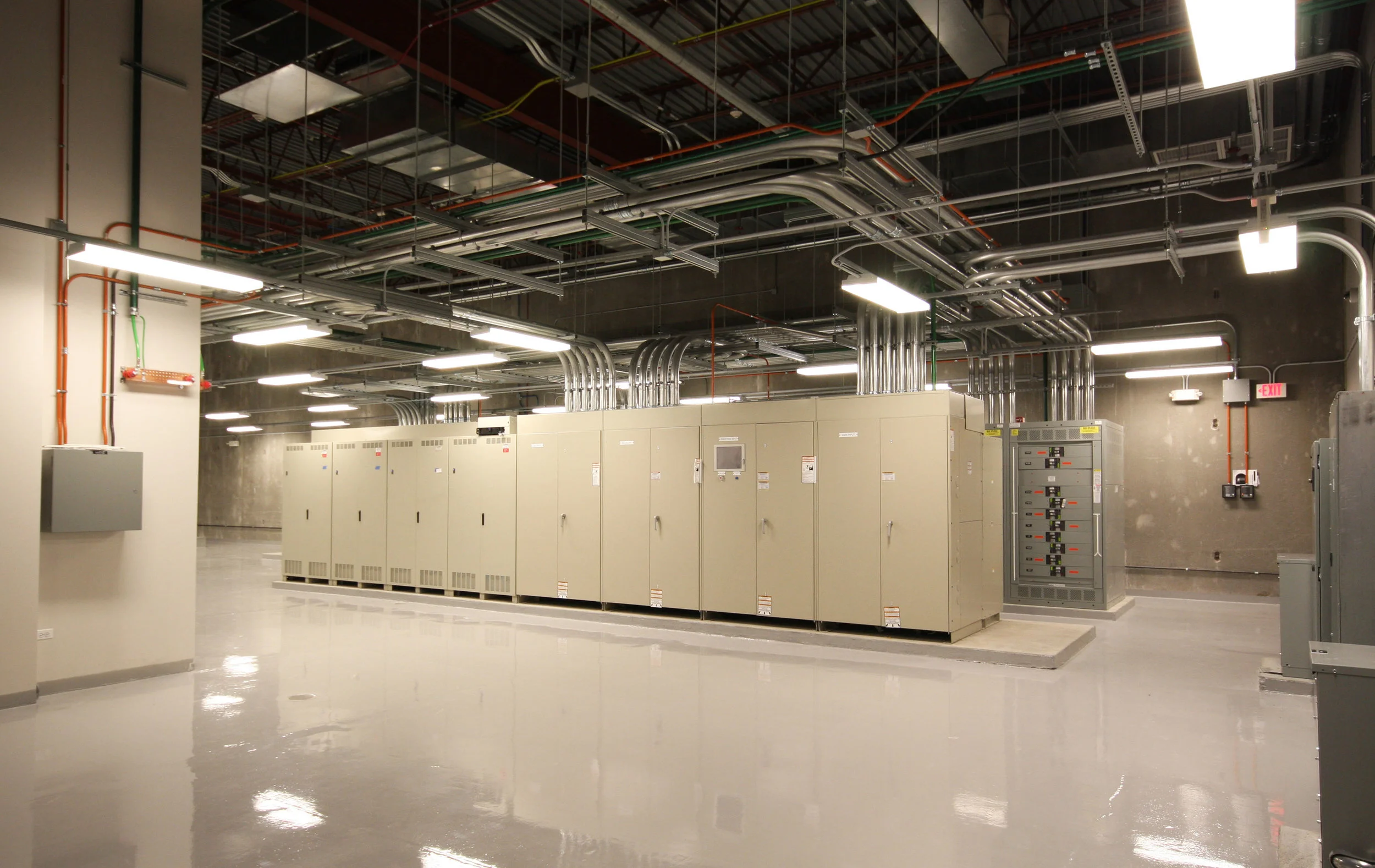

- 6 MW of medium voltage feeds
- N+1 UPS
- Base building generator configuration of N+1 w/48 hour fuel back up
- A&B PDU distribution
- Three diverse fiber entrances
- 1200 ton N+1 evaporative condensing cooling with refrigeration side economizers
- Double interlock pre-action system for all technical spaces

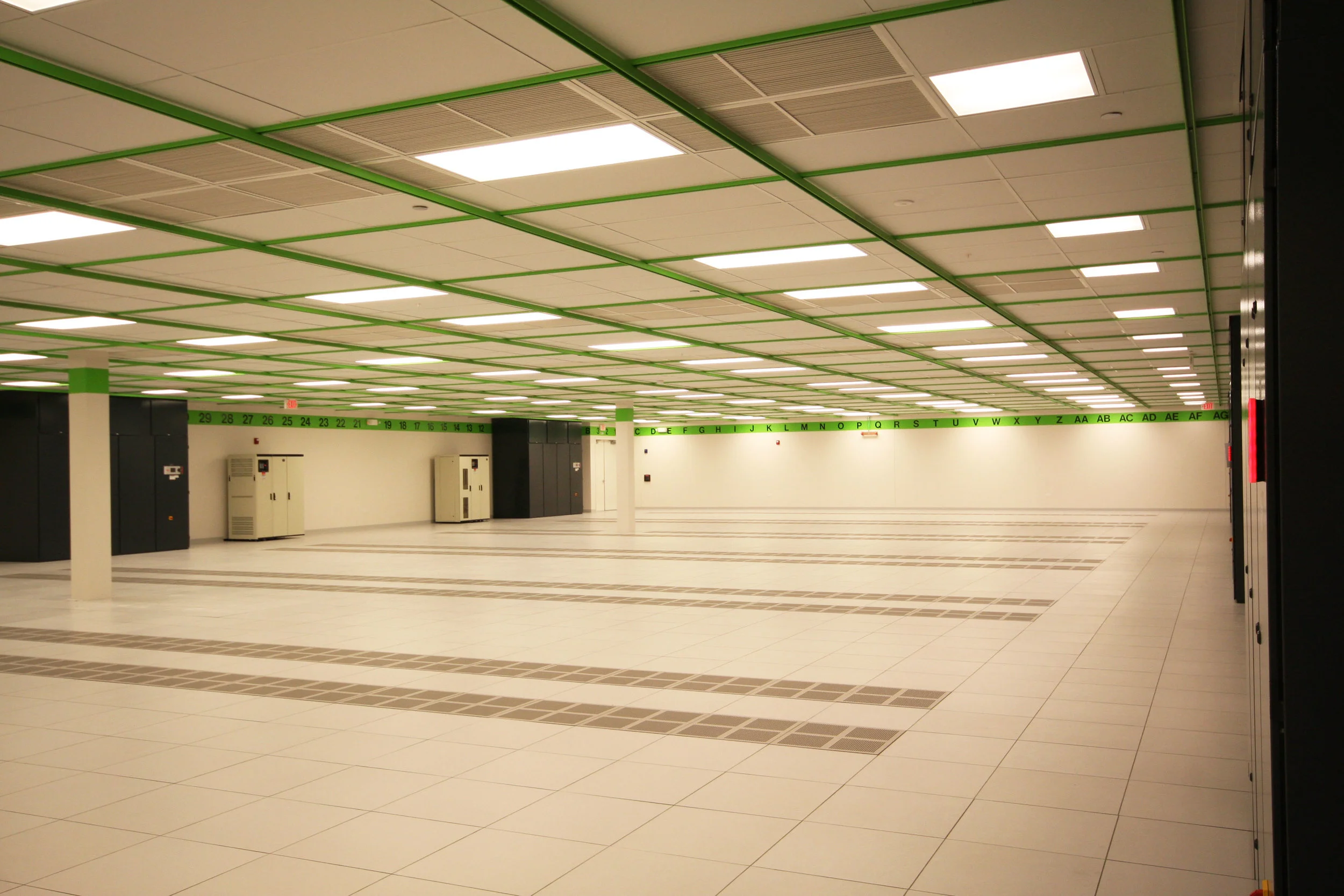

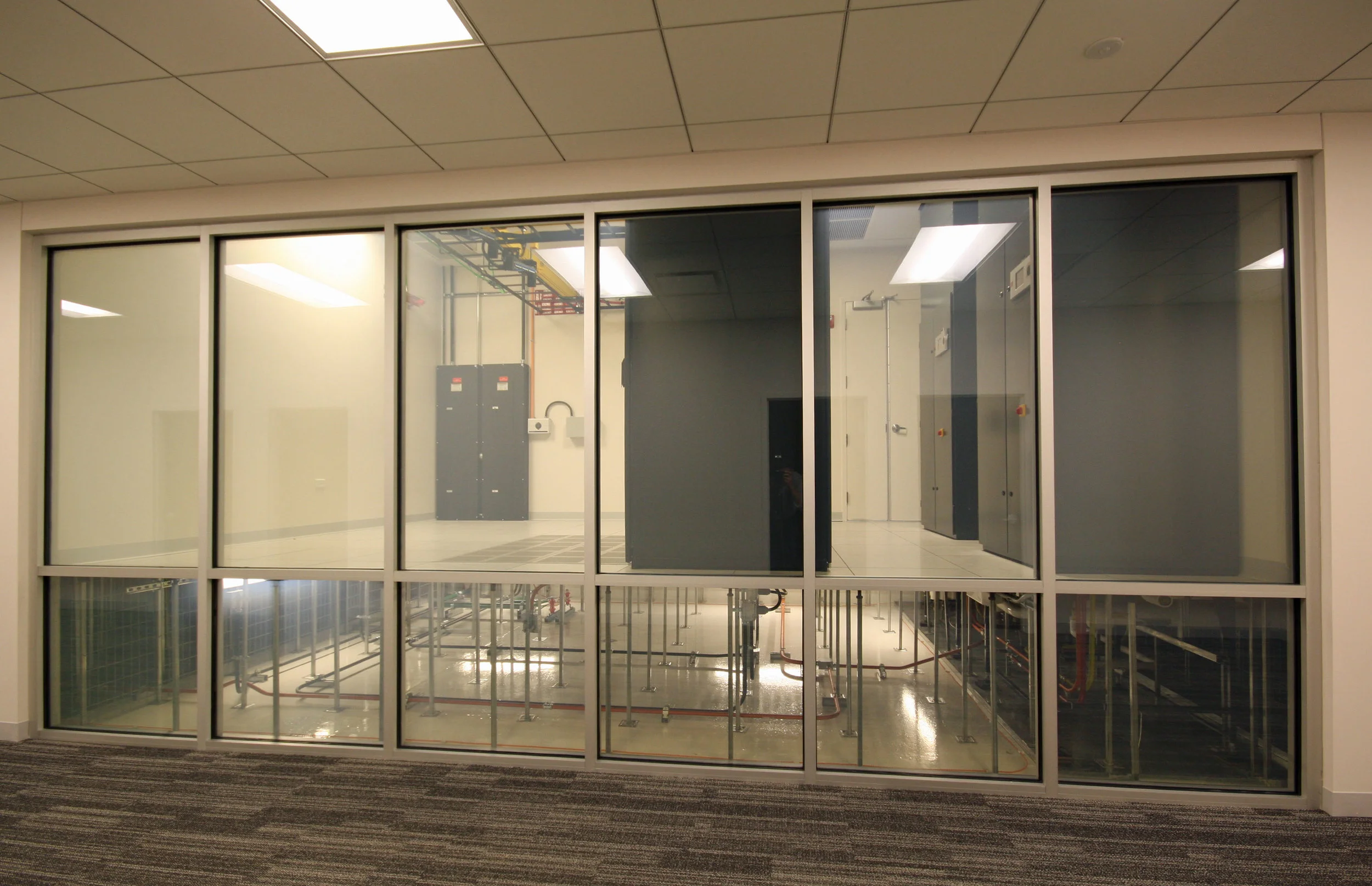

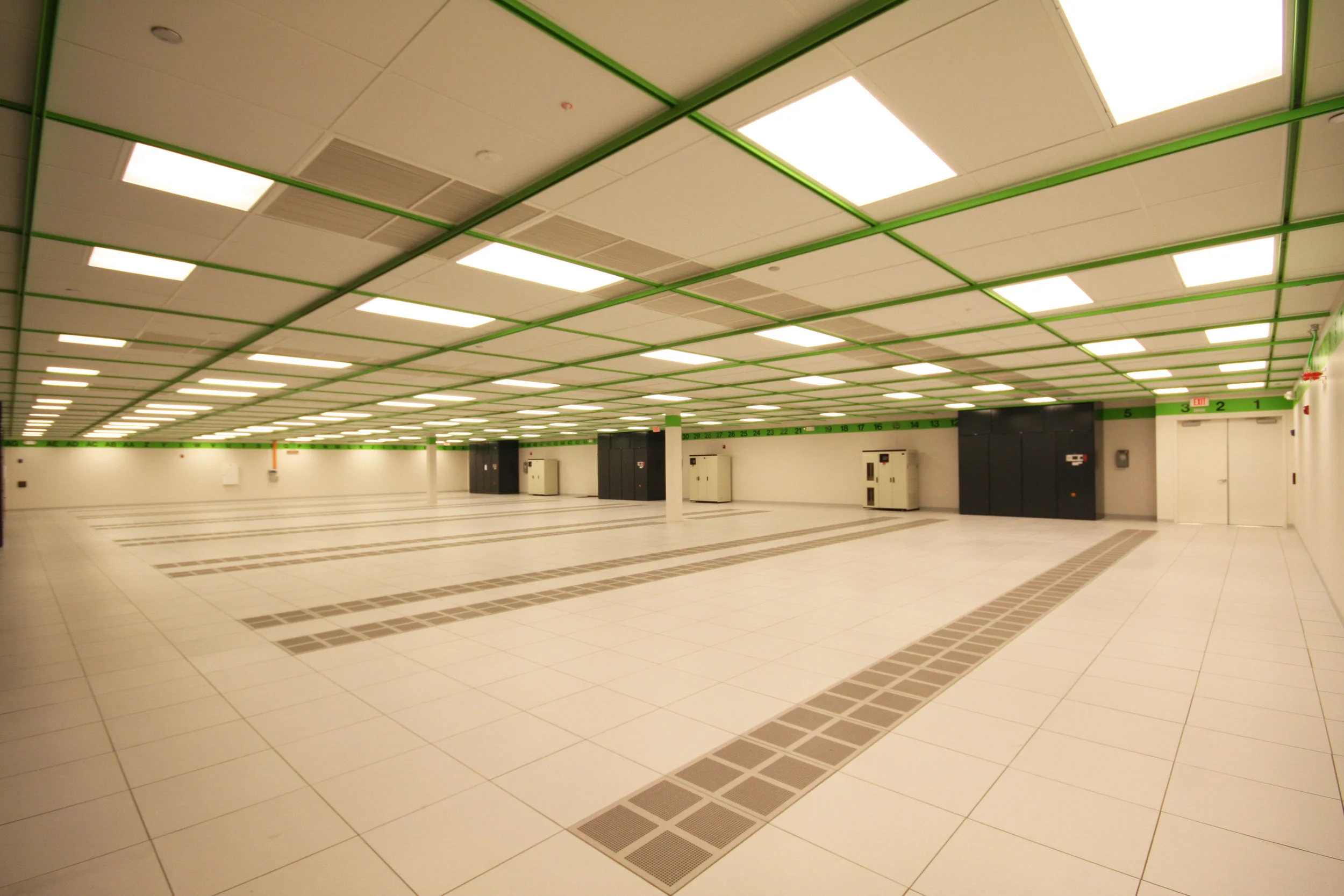

- 36” raised floor
- 365/24/7 manned security, cameras and card readers

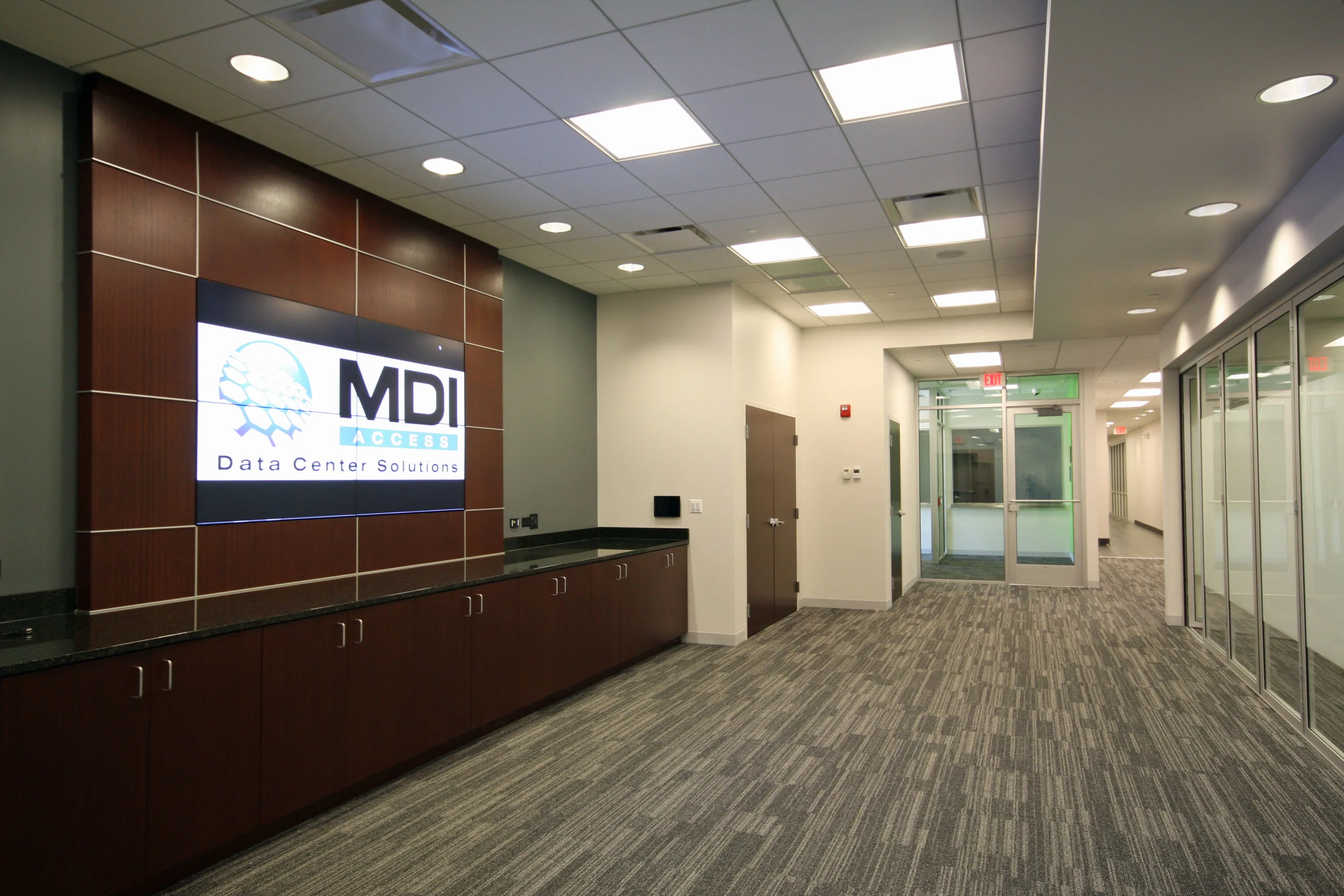

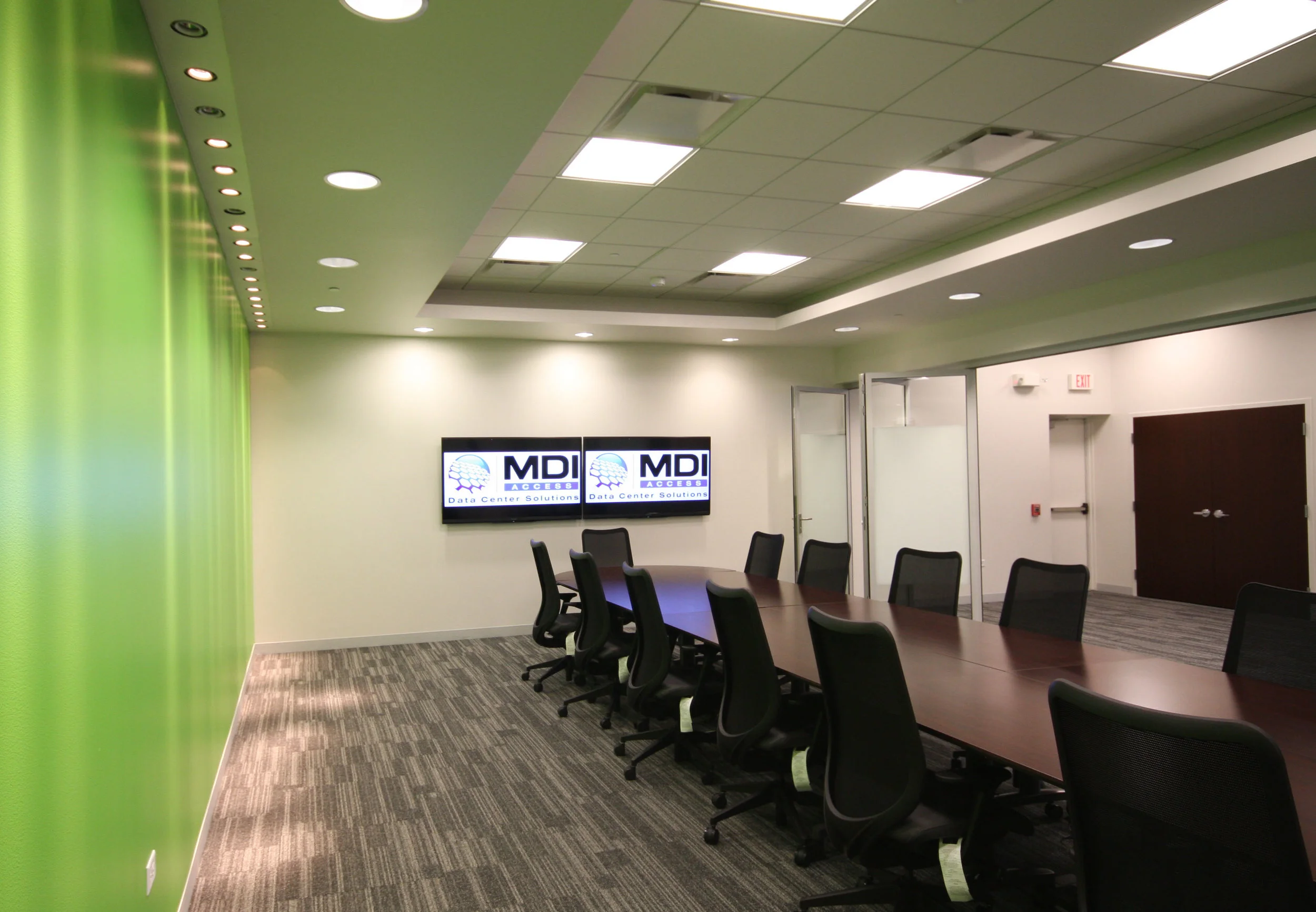

- Private offices, storage and shared conference & meeting spaces
Services:
Architecture
BIM Services
Cost:
$$$$
Industry:
Mission Critical
